L 25 Multi Function Marine Survey USV

L 25 Multi Function Marine Survey USV
L 25 Multi Function Marine Survey USV
  • Stock: In Stock
  • Model: L 25
$0.00
Ex Tax: $0.00
Parameters
Automatic Payload LifterYes
Collision Avoidance SystemSide light/AIS/Navigation Radar/4*HD Camera
Communication Range> 10 Km
Draft40 cm
Endurance65hr @ 4kn
Multi MissionsYes
Operation Sea StateSS 3
Payload200 kg
Video MonitoringYes
Hull MaterialAluminum Alloy
Dimension(L)7.5 m *(W)2.8 m*3m(H)
Weight2400 kg
PropulsionPropeller X 2 +Outboard Disel Engine 50HP X 2
Max. Speed10 knots
L-25 Multi-function Marine Survey USV
The L25 USV can carry up to 200kg of hydrographic & geophysical instruments to conduct multi-purposed physical oceanographic surveys and biological environment monitoring on the deep sea.
Buy Now
Outstanding Payload Capacity
Wider deck, bigger payload, supporting multiple equipment work simultaneously for underwater inspection, hydrography survey and oceanography survey.
Buy Now
Longer Endurance, High Efficiency
Standard range is 65h@4kns, extendable to 130h@4kns, significantly surpassing similar-sized manned boats.
Buy Now
Advanced Design for Easy Configuration

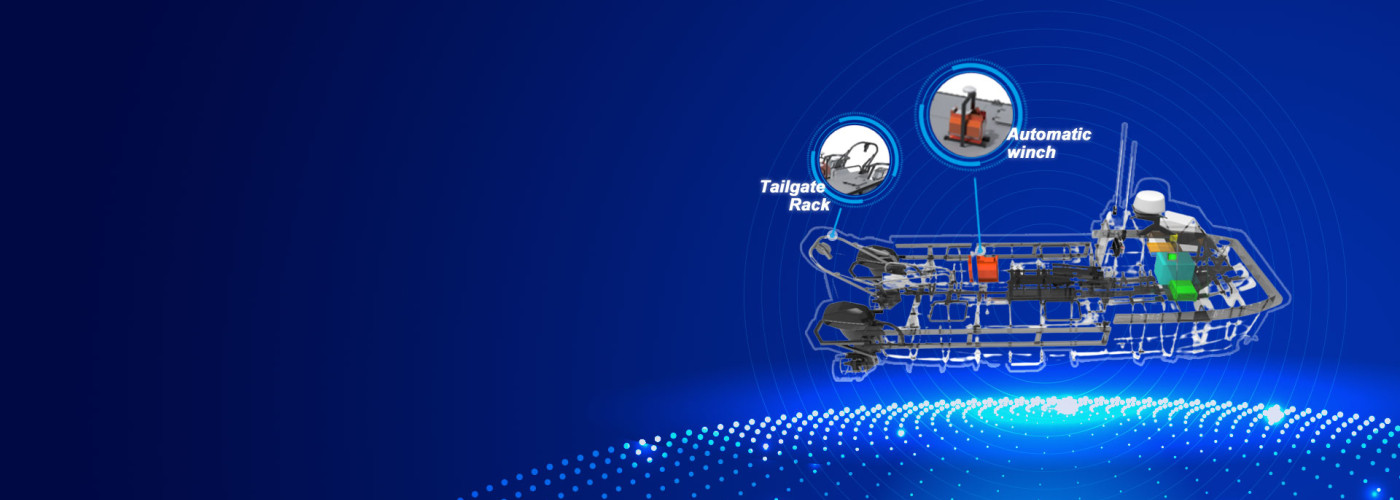

  • Small A-frame and winch support towing survey, cable length up to 200 meters;
  • Foldable lifter protects instruments wet ends and offers greater payload capacity.
Buy Now
Stable Working Condition for Survey
  • Excellent stability,roll range smaller than 10 degrees in SS4.
  • Catamaran design significantly reduces swaying and spray foam, providing stable and quiet working condition for acoustic equipment
  • Low noise electric Plug-in thruster, reduces signal-to-noise ratio by 20%
Buy Now
Autonomous Control with High Precision
  • Radar, HD camera and AIS sensing enabling highly sensitive environmental perception

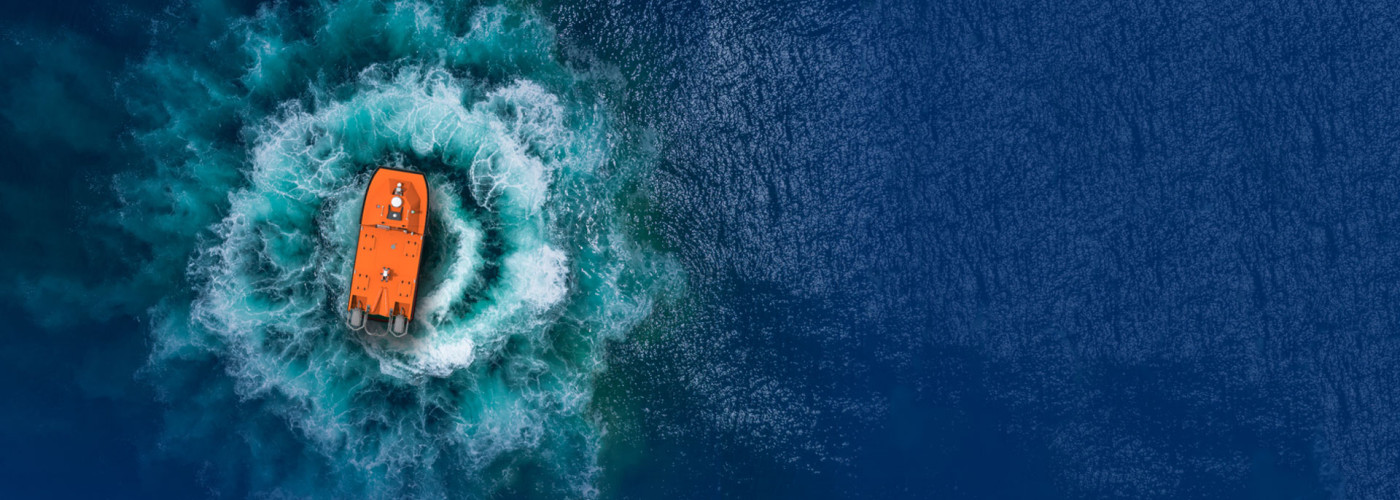

  • Dual engine and dual propeller providing large torque, L25 can rotate in situ
  • Able to navigate closely around constructions for zoom-in inspection
  • Autonomous navigation algorithm, advanced obstacle avoidance algorithm and propulsion control algorithm applied to minimize risk of collision
Buy Now
Auto Return
During a mission, if the L25 loses communication or is about to run out of power, it can automatically sail back to the designated location to avoid getting lost on the sea.
